Fuji Machine Works, Other Specialized Machines
Other Specialized Machines

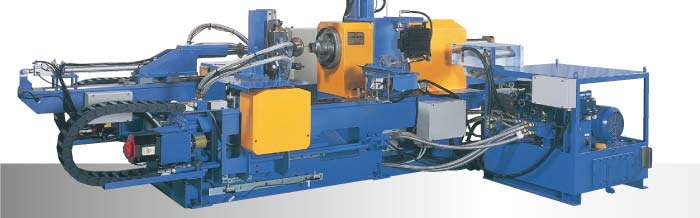

CNC Spinning Machine
Servo driven one and two roller model Spinners process the work as it is revolves at high speed, allowing for smooth finish and the most difficult contours. These Spinners allow for the fast forming of workpieces without welding and other waste. Quick tooling changes permit various sized workpieces on a single machine. Models available to handle up to 4 axis machines provide for even the most sophisticated processing.
Order Made Design allows the processing from the simplest to the most sophisticated shapes that your needs require.

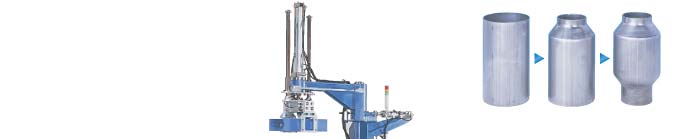

Automated Loading and Unloading, as well as robotic features are also available for high production environments.

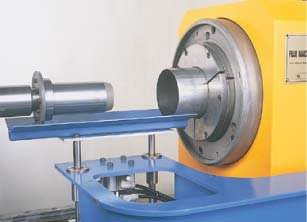

Load pipe into
the machine

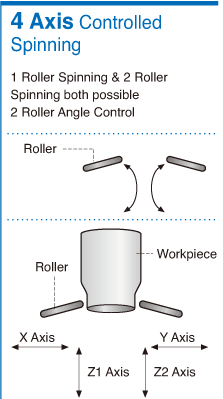

  4 Axis Spinning
(Side View)
  End Cutting
Process
  Champhering   Spinning
Completed
